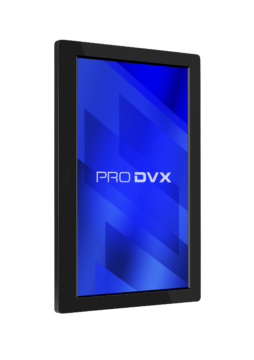

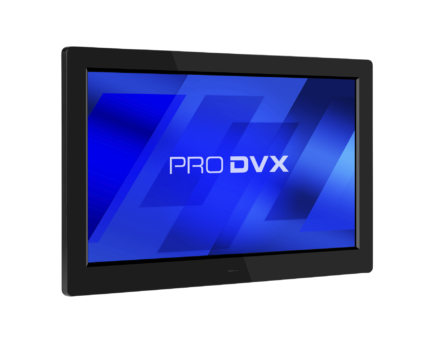

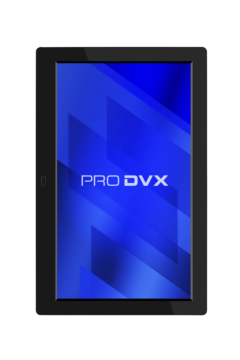

SD-10

SKU: 2010100
  • 10.1" Signage Display
  • Embedded FHD Media Player
  • HDMI video input
  • The ProDVX SD-10 is a professional Signage Display. The ProDVX SD-10 comes with an embedded FHD Media Player. The content can be connected through the HDMI input and the unit has a SD, MMC, and MS Card Slot. This 10.1" Commercial Grade Signage Display standard comes with an Auto Video Play & Loop option and has plastic housing. This device supports multiple video, audio and photo sources and can be mounted through a half VESA mount. The SD-10 standard comes with speakers and an audio jack output 3.5 mm.
    Panel
    Panel type TFT LCD IPS
    Resolution 1024 x 600
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 300 cd/m2
    Viewing angle H160 / V160
    Contrast ratio 500 to 1
    Touch Type N.A.
    Convenience Landscape,Portrait
    Gyro N/A
    Operation hours 24h / 7d
    System
    Monitor YES
    Video input Yes, HDMI in
    Video resolution 1920 x 1080
    Internal media player YES
    External storage SD-Card Slot
    Card slot SD/MMC/MS
    USB Host 1 x
    I/O Ports 12 V DC-IN,3.5 mm audio-in,3.5 mm audio-out,USB 2.0,HDMI-in 1.4
    Auto Video Play & Loop YES
    Video/Audio
    Video support AVI,H.264,MKV,MOV,MPG,MPEG2,MPEG4,RM,RMVB,TS etc.
    Audio support AAC,MP3
    Photo support JPEG,BMP
    Speakers 2 x 1 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 475 g
    Dimensions 256,4 x 163,8 x 22,3 mm
    Mounting / VESA VESA unique pattern
    Power Supply 12 V / 1.5 A
    Power Supply Included? Yes
    Power Usage 10 Watt
    Other
    OSD Language Multi OSD language
    Real time clock (RTC) YES
    Calendar YES
    Remote control YES
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    Standard Warranty 2 years
    Certifications CE, RoHS
    SKU 2010100
