APPC-10SFN
(R25-7281)
SKU: 5010730

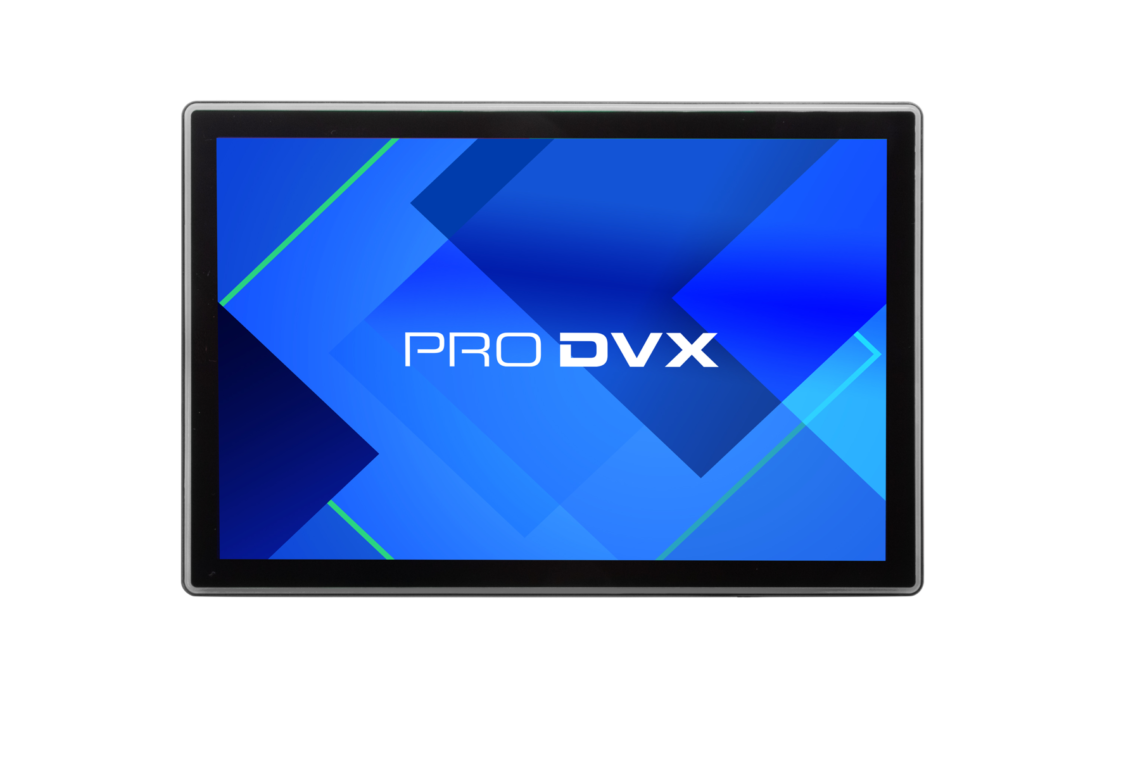

The ProDVX APPC-10SFN is a versatile 10.1” Android Panel PC featuring a Full Surround LED bar and an integrated NFC reader, making it perfect for dynamic environments and interactive applications. Powered by the RockChip RK3568 Quad-core processor and running Android 13, it delivers reliable performance with 4GB RAM and 16GB storage, expandable via SD card. The customizable Full Surround LED bar enhances branding or provides visual status indicators, while the NFC reader (NXP PN7160) enables seamless contactless interactions, ideal for retail, hospitality, and access control. Its direct-bonded IPS touchscreen with 1280x800 resolution offers sharp visuals and responsive touch, complemented by PoE+, fanless cooling, mini-HDMI out, and versatile connectivity options (USB, LAN). Designed for 24/7 operation with a demonstrated MTBF of 50,000 hours, this compact yet durable device supports flexible mounting options to meet diverse business needs.
Panel
| Panel type | Direct bonded TFT LCD IPS |
| Backlight | Edge-LED backlight |
| Brightness | 450 cd/m2 |
| Viewing angle | H160 / V160 |
| Contrast ratio | 1000 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait,Flushmount |
| Operation hours | 24h / 7d |
System
| GPU | Mali-G52 |
| Cooling | Fanless |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| External storage | SD-Card Slot |
| OS | Android 13 |
| LED Light Bar | Individually controlled Full RGB LED |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | optional via USB dongle |
| Bluetooth | optional via USB dongle |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | Integrated NFC reader (NXP PN7160) |
| Camera | via PoGo & USB |
Video/Audio
| Video support | H.264,MP4,MPG,MPEG2,MPEG4 |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | Yes |
| Speakers | 2 x 2 W |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 600 g |
| Dimensions | 240,9 x 159,7 x 24,4 mm |
| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Usage | 10 ~ 23 Watt |
| Pogo Pins | 2x (bottom/left) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5010730 |
