APPC-10SFA
(R25-7581)
SKU: 5010740

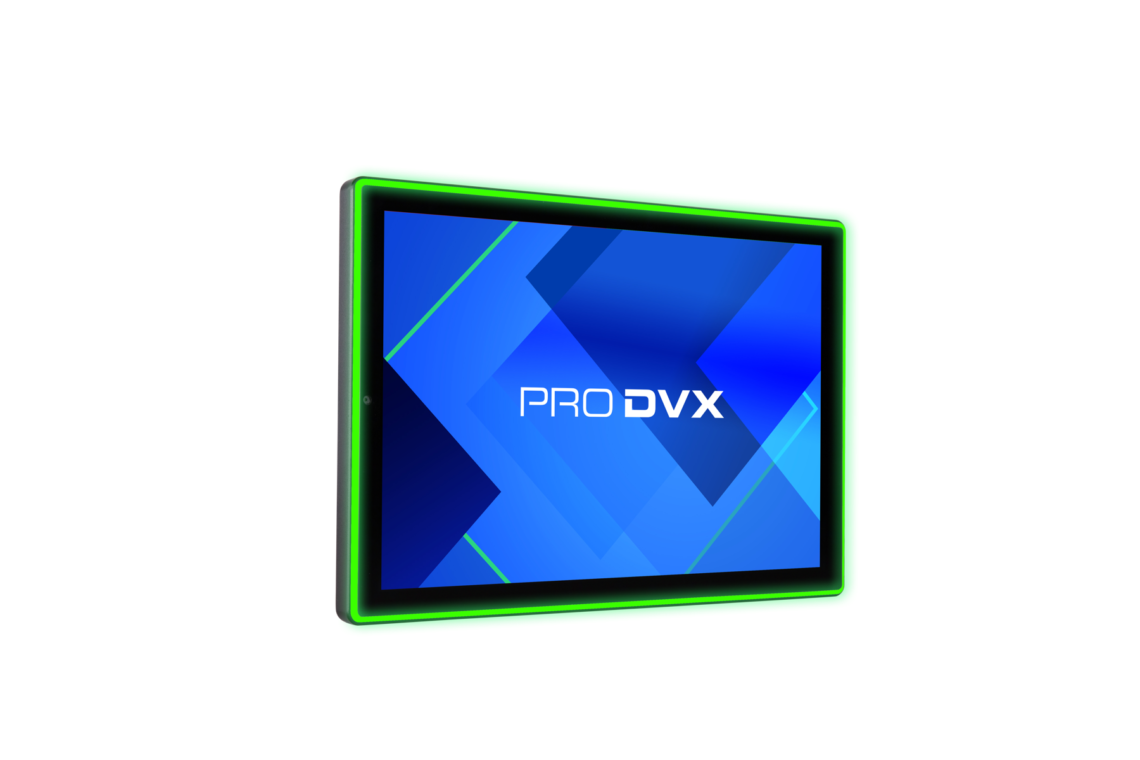

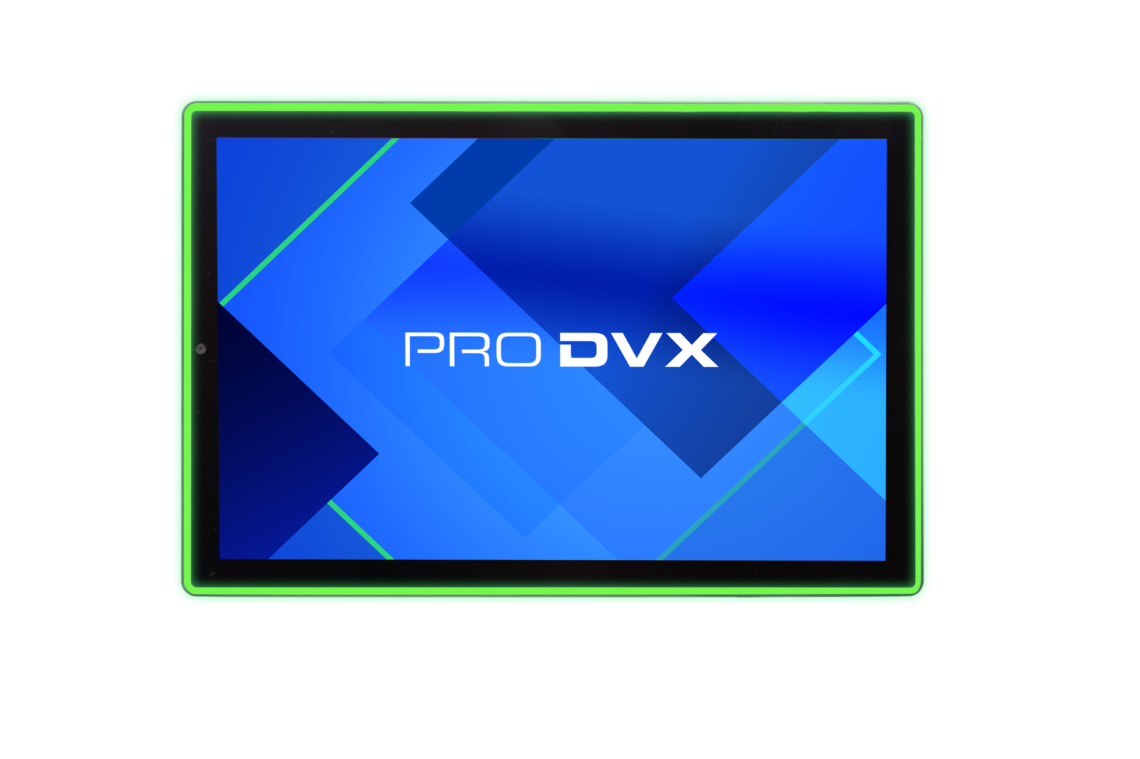

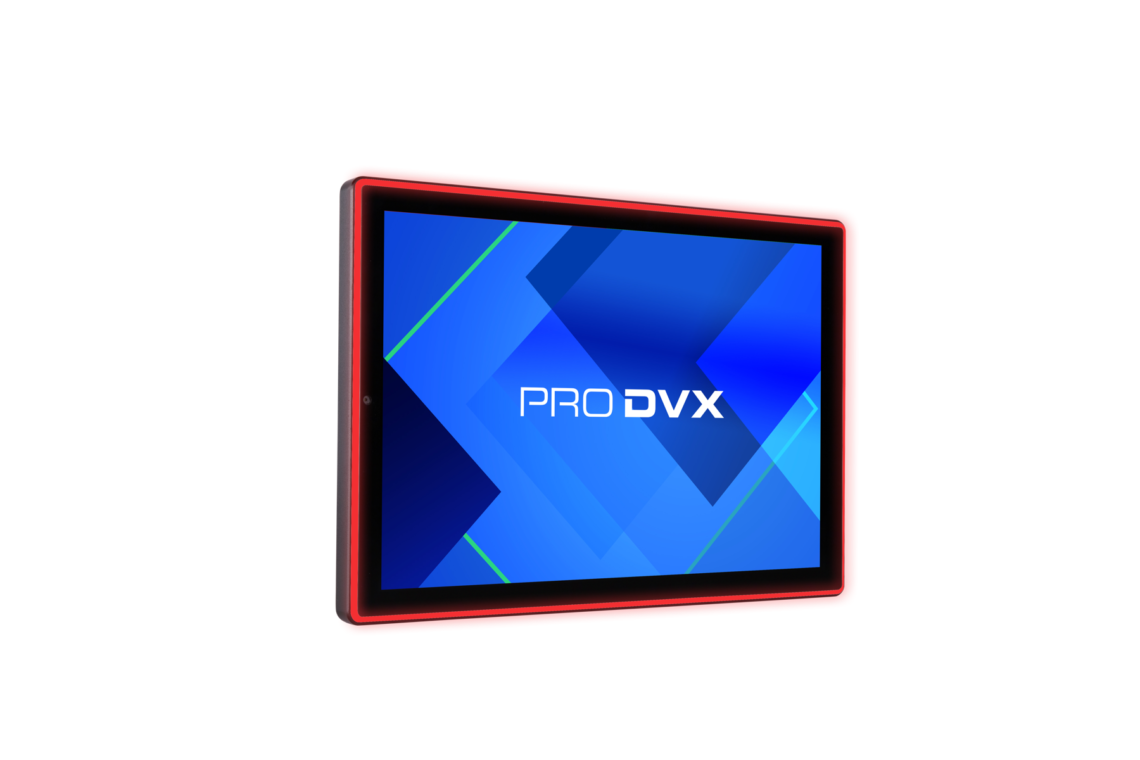

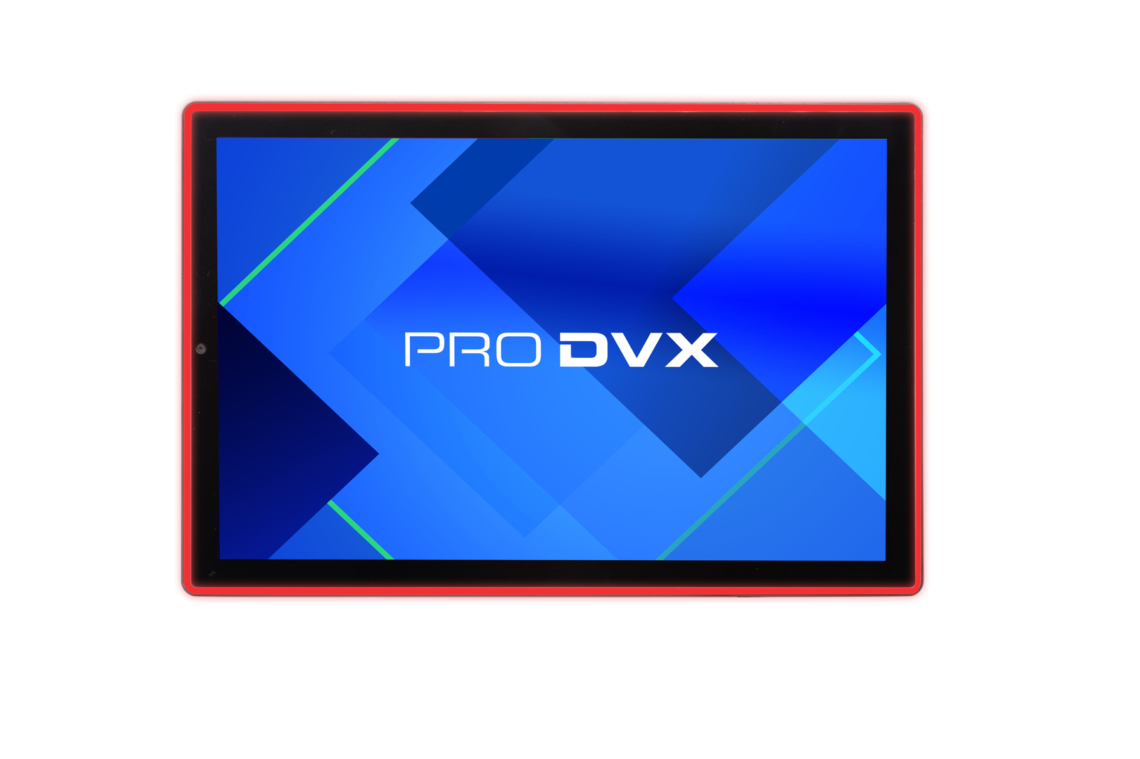

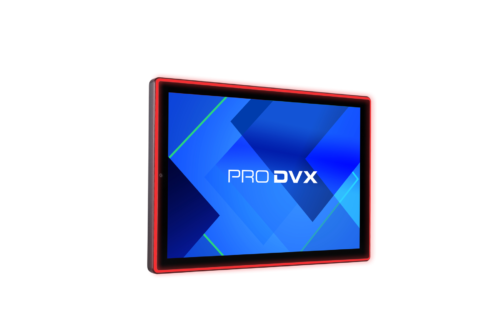

The ProDVX APPC-10SFA is a versatile 10.1” Android Panel PC featuring a Full Surround LED bar, integrated NFC reader, front-facing 5MP camera, and motion radar sensor, designed to meet the needs of interactive and dynamic applications. Powered by the RockChip RK3568 Quad-core processor and running Android 13, it ensures smooth performance with 4GB RAM and 16GB storage, expandable via SD card. The Full Surround LED bar provides customizable RGB lighting for branding or status indication, while the NFC reader (NXP PN7160) enables seamless contactless interactions. The front-facing camera supports applications such as user identification or capturing visual data, and the motion radar sensor enhances automation by detecting proximity for energy-saving or interactive triggers. Its direct-bonded IPS touchscreen with 1280x800 resolution ensures sharp visuals and responsive touch. Additional features like PoE+, fanless cooling, mini-HDMI out, and versatile connectivity options (USB, LAN) make it ideal for retail, hospitality, healthcare, and industrial environments. Built for 24/7 operation with an MTBF of 50,000 hours, this compact yet durable device supports flexible mounting options to meet diverse business needs.
Panel
| Panel type | Direct bonded TFT LCD IPS |
| Backlight | Edge-LED backlight |
| Brightness | 450 cd/m2 |
| Viewing angle | H160 / V160 |
| Contrast ratio | 1000 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait,Flushmount |
| Operation hours | 24h / 7d |
System
| GPU | Mali-G52 |
| Cooling | Fanless |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| External storage | SD-Card Slot |
| OS | Android 13 |
| LED Light Bar | Individually controlled Full RGB LED |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | optional via USB dongle |
| Bluetooth | optional via USB dongle |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | Integrated NFC reader (NXP PN7160) |
| Camera | 5 M/P front camera |
Video/Audio
| Video support | H.264,MP4,MPG,MPEG2,MPEG4 |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | Yes |
| Speakers | 2 x 2 W |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 600 g |
| Dimensions | 240,9 x 159,7 x 24,4 mm |

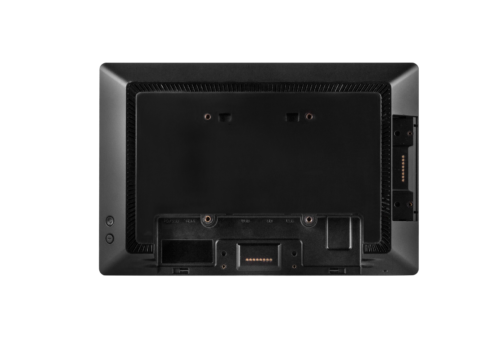

| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Usage | 10 ~ 23 Watt |
| Pogo Pins | 2x (bottom/left) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5010740 |
