APPC-10SLBe
SKU: 5010800
This is a legacy product and is no longer available.
Please find the replacement for this product here.

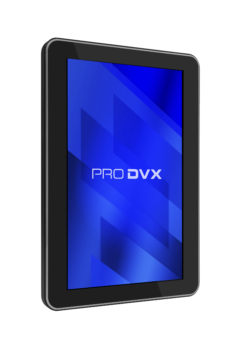

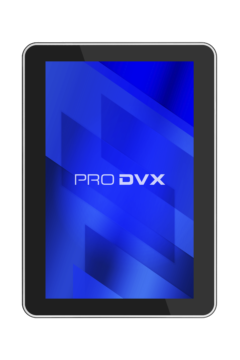

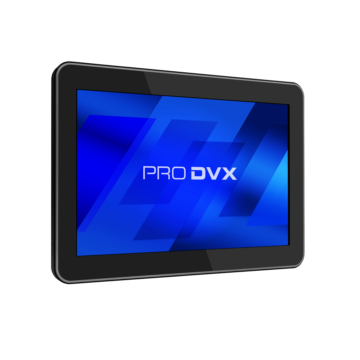

The ProDVX APPC-10SLBe is our newest 10.1 inch Android Panel PC. Running on Android 11, it comes with a range of preinstalled Google apps, such as the Google Play Store, Chrome, YouTube, and many more of the Google apps that you are familiar with. The addition of the Google Play Store now makes it possible to deploy content or updates remotely to all your devices in the field, from one central hub with the help of an MDM tool. The APPC-10SLBe also supports Zero Touch Deployment, allowing you to preconfigure devices with your organization's policies already enforced. Furthermore, Google Play Protect ensures automatic security updates and adds a new layer of security to the APPC-10SLBe, making it our most secure device to date.

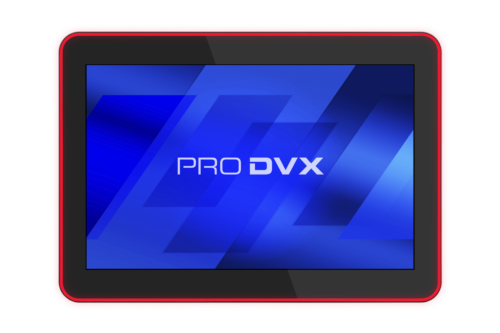

The APPC-10SLBe also comes with a powerful RK3399 CPU and 4GB of RAM, which allows you to operate multiple apps at the same time. Run multiple background applications while your front end application runs smoothy. In addition, the device contains several innovative features such as the full RGB surround LED bar, up to 500cd/m2 brightness, an internal NFC module and it can be connected via Power over Ethernet+. The APPC-10SLBe now comes with a 5 year warranty.
Panel
Panel type | TFT LCD IPS |
Resolution | 1280 x 800 |
Aspect ratio | 16:10 wide |
Backlight | Edge-LED backlight |
Brightness | 500 cd/m2 |
Viewing angle | H 160° / V 160° |
Contrast ratio | 800 : 1 |
Touch Type | 10 point touch projected capacitive |
Convenience | Landscape,Portrait,Table Mode |
Operation hours | 24/7 |
System
CPU | RK3399 (Dual Core Cortex A72 with Quad Core A53) |
GPU | MALI T860MP4 / 3D Graphic Engine (4K) |
Cooling | Fanless |
System memory | 4 GB DDR4 SDRAM |
Video input | N.A. |
Video out | Yes, HDMI out |
Internal storage | 16 GB eMMC Flash |
External storage | SD-Card Slot (door) |
Card slot | SD |
OS | Android 11 with Google Mobile Services |

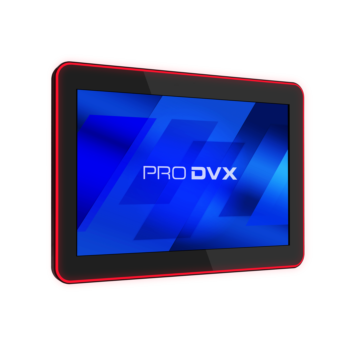

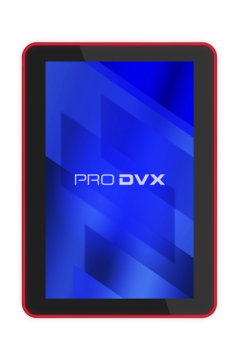

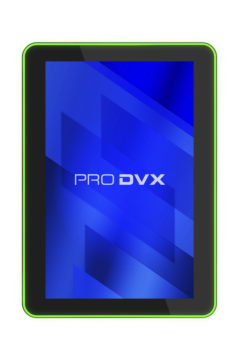

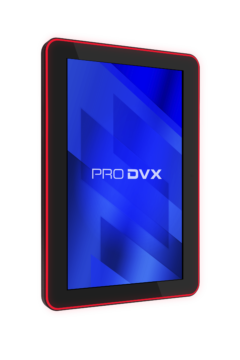

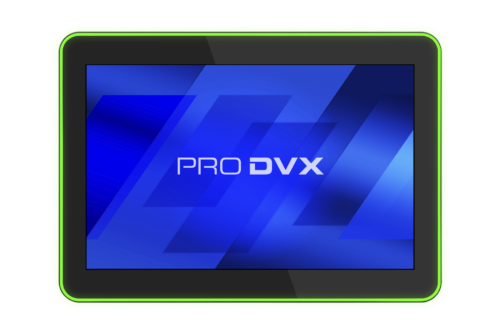

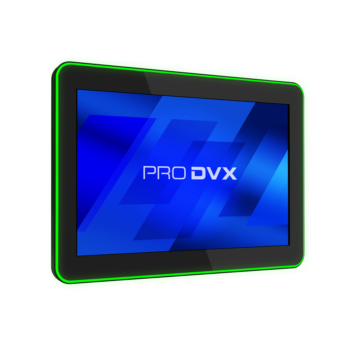

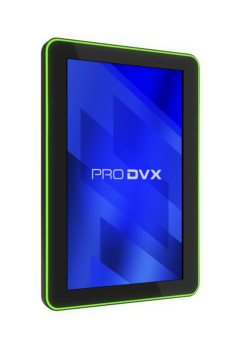

LED Light Bar | Surround LED Bar (full RGB) |
I/O Ports | 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,HDMI out,USB 2.0 |
Network LAN RJ45 | 10/100/1000 Mbps LAN |
WiFi | 802.11 a/b/g/n |
Bluetooth | BT 4.2 |
Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
Integrated NFC | Integrated NFC reader (NXP PN553) |
Camera | N/A |
Video/Audio
Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
Photo support | JPG,JPEG,PNG,BMP,GIF |
Microphone | YES |
Speakers | 2 x 2 W |
Audio Jack Output 3.5mm | YES |
Physical
Housing | Plastic |
Color | Black |
Weight | 650 g |
Dimensions | 255,3 x 181 x 26,7 mm |
Mounting / VESA | VESA 75 |
Power Supply | 12 V / 2 A (EU, UK, US) |
Power Supply Included? | No |
Power Usage | 10 ~ 20 Watt |
Pogo Pins | YES (bottom/left/right) |
Other
OSD Language | Multi OSD language |
Clock Battery (for RTC) | CR1220 - Lithium‐metal non‐rechargeable coin |
Storage Temp | ‐10 ~ 55 degrees C |
Working Temp | 0 ~ 40 degrees C |
Storage/Working Humidity | 10 ~ 90 % non-condensing |
MTBF | 50,000 hours demonstrated |
Standard Warranty | 5 years |
Certifications | FCC, CE, RoHS |
SKU | 5010800 |
