Back to all Products

APPC-12XP

(R23-7222)
SKU: 5012200
  • 11.6" Android Panel PC
  • Power over Ethernet+
  • Android 12

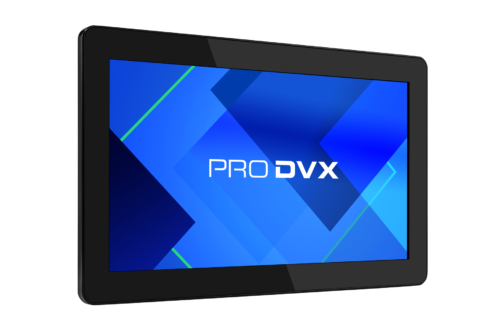

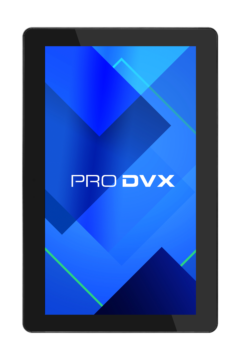

  • Explore our latest 12-inch Android Panel PC, the APPC-12XP (R23-7222). Operating on Android 12 and powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device provides seamless operation and advanced graphics capabilities. Featuring 4GB RAM and 16GB storage, it enables efficient multitasking, while IEEE 802.3at PoE+ support streamlines power and connectivity and eliminates complex wiring plans. This Android Panel PC offers diverse I/O ports for peripheral devices, making it ideal for many solutions from retail and corporate, to healthcare and industrial settings. The APPC-12XP (R23-7222) supports 10-point PCAP touch functionality and has undergone a non-glare treatment for enhanced visibility. In addition, the APPC-12XP (R23-7222) supports 600cd/m2. With its innovative features, the APPC-12XP (R23-7222) is the perfect device to enhance your solution.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 600 cd/m2
    Viewing angle H160 / V160
    Contrast ratio 1000 to 1
    Touch Type 10 TP Pcap 10ms
    Treatment Non-glare
    Convenience Landscape,Portrait,Table Mode
    Gyro N/A
    Operation hours 24h / 7d
    System
    CPU RK3568 (Quad-core ARM Cortex-A55)
    GPU Mali-G52
    Cooling Fanless
    System memory 4GB LPDDR4 SDRAM
    Video input N.A.
    Video out Yes, mini-HDMI out
    Internal storage 16 GB eMMC Flash
    External storage SD-Card Slot (door)
    Card slot SD
    OS Android 12
    LED Light Bar via PoGo
    I/O Ports 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,mini-hdmi-out,HDMI out,USB 2.0,GPIO
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n
    Bluetooth 5
    Power over Ethernet (PoE) IEEE 802.3at (PoE+)
    Integrated NFC via PoGo & USB
    Camera via PoGo & USB
    Video/Audio
    Video support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
    Audio support AAC,ASF,MP2,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone YES
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 900 g
    Dimensions 295,8 x 189,6 x 26 mm
    Mounting / VESA VESA 75
    Power Supply 12 V / 2 A
    Power Supply Included? No
    Power Usage 10 ~ 23 Watt
    Pogo Pins 3x (bottom/left/right)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR1220 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 45,000 hours demonstrated
    Standard Warranty 3 years
    Certifications UKCA, CE, FCC, RoHS, REACH
    SKU 5012200
