UW-24
(R24-5021)
SKU: 5524105
The ProDVX UW-24 (R24-5021) is an all-in-one Android SOC UltraWide Signage Display. The ProDVX UW-24 (R24-5021) comes with Android 12. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 24" all-in-one Android SOC UltraWide Signage Display comes with a special mounting plate and has metal housing.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 360 |
| Aspect ratio | 16:3 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m2 |
| Viewing angle | H178 / V178 |
| Contrast ratio | 1200 to 1 |
| Touch Type | N.A. |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait |
| Gyro | YES |
| Operation hours | 24h / 7d |
System
| CPU | RK3568 (Quad-core ARM Cortex-A55) |
| GPU | Mali-G52 |
| Cooling | Fanless |
| System memory | 4GB DRAM |
| Video input | N.A. |
| Video out | Yes, HDMI out |
| Internal storage | 16GB eMMC |
| External storage | SD-Card Slot |
| Card slot | SD |
| OS | Android 12 |
| LED Light Bar | N.A. |

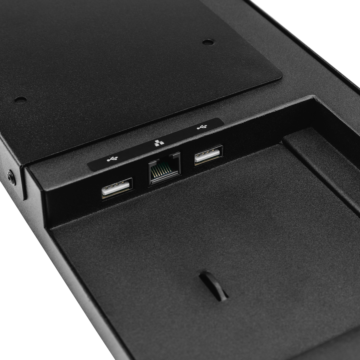

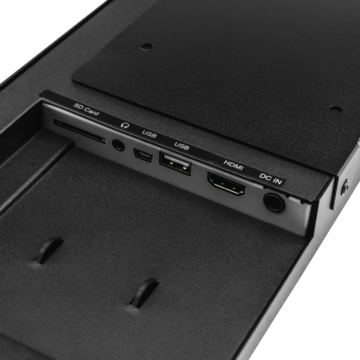

| I/O Ports | 3.5 mm audio-out,Mini-USB,RJ45,HDMI out,12 V DC-IN,2x USB 2.0,USB 3.0 |
| Network LAN RJ45 | 10/100/1000 Mbps, RJ45 |
| WiFi | 802.11 b/g/n |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | via USB |
| Camera | via USB |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | via USB & 3.5mm jack |
| Speakers | via USB & 3.5mm jack |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 2750 g |
| Dimensions | 615,73 x 140,1 x 34 mm |
| Mounting / VESA | VESA unique pattern |
| Power Supply | 12 V / 3 A |
| Power Supply Included? | Yes |
| Power Usage | 10 ~ 18 Watt |
| Pogo Pins | N.A. |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 40,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | CE, RoHS, REACH |
| SKU | 5524105 |
