IPPC-22-6000

SKU: 6022100

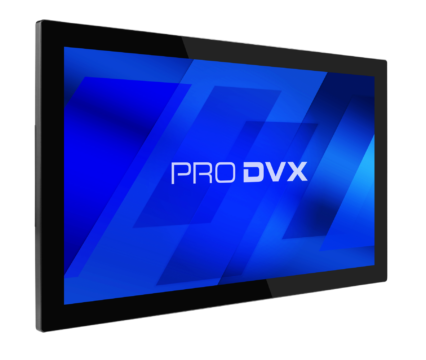

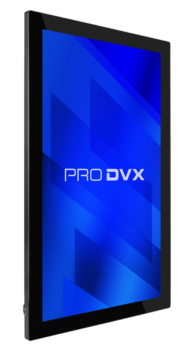

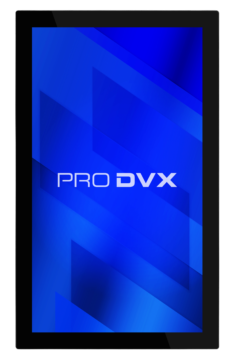

  • 21.5" Intel Panel PC
  • Intel Pentium N4200 1.1 GHz
  • Windows 10 IoT Enterprise LTSC
  • The ProDVX IPPC-22-6000 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-22-6000 standard comes with an Intel Pentium N4200 1.1 GHz. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets. This product requires an additional Windows 10 IoT Enterprise LTSC license.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 250 cd/m2
    Viewing angle H178 / V178
    Contrast ratio 3000 to 1
    Touch Type 10 TP Pcap 20ms
    Treatment Glare
    Convenience Landscape,Portrait,Table Mode
    Gyro N/A
    Operation hours 24h / 7d
    System
    Chipset HD505
    CPU Intel Pentium N4200 1.1 GHz
    GPU Intel HD 505 Graphics
    Cooling Fanless
    System memory 4GB DDR3L
    Video input N.A.
    Video out Yes, mini-HDMI out
    Internal storage SSD 64GB M.2 2242
    External storage SD-Card Slot (door)
    Storage socket 2 SD-Card Slot (door)
    OS Windows 10 IoT LTSC
    Additional Windows license required Yes, at a cost
    LED Light Bar N.A.
    I/O Ports 12 V DC-IN,2x COM (RJ45),Ethernet (RJ45),Micro-USB,S/PDIF,mini-hdmi-out,Combo Jack,2x USB 3.0
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 a/b/g/n/ac
    Bluetooth BT 4.2
    Power over Ethernet (PoE) N.A.
    Integrated NFC via PoGo & USB
    Camera via PoGo & USB
    Video/Audio
    Video support MKV,MP4
    Audio support MP3,WMA
    Photo support JPEG,PNG
    Microphone YES
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing ABS+PC (Macrolon)
    Color Black
    Weight 4200 g
    Dimensions 530,5 x 321,22 x 35 mm
    Mounting / VESA VESA 100
    Power Supply 12 V / 5 A
    Power Supply Included? Yes
    Power Usage 40 ~ 70 Watt
    Pogo Pins 3x (bottom/left/right)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR2032 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90% non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 3 years
    Certifications CE, RoHS, REACH
    SKU 6022100
