IPPC-32-6000

(R24-6000)
SKU: 6032200

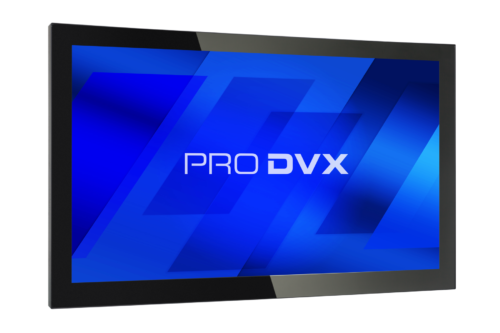

  • 31.5" Intel Panel PC
  • Intel Pentium N4200 1.1 GHz
  • Windows 10 IoT Enterprise LTSC
  • Create the perfect interactive solution with the IPPC-32-6000. Equipped with an Intel Pentium N4200 processor and 4GB of memory, this device is well-suited for applications such as interactive kiosks, wayfinding, and self-service solutions. Designed to operate 24/7 and featuring a durable 10-point PCAP touch panel, the IPPC-32-6000 can easily endure intense daily use. VESA mountable, the IPPC-32-6000 ensures easy installation. With a diverse range of I/O ports, it offers flexibility, enabling seamless connectivity to various peripherals and transforming it into the ideal interactive kiosk display. This product requires an additional Windows 10 IoT LTSC license.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 400 cd/m2
    Viewing angle H178 / V178
    Contrast ratio 1200 to 1
    Touch Type 10 TP Pcap 20ms
    Treatment Non-glare

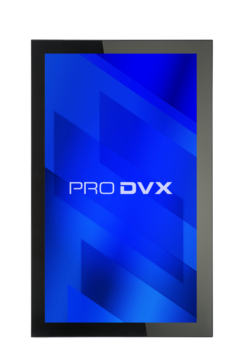

    Convenience Landscape,Portrait,Table Mode
    Operation hours 24h / 7d
    System
    CPU Intel Pentium N4200 1.1 GHz
    GPU Intel HD 505 Graphics
    Cooling Fanless
    System memory 4 GB DDR3L 1600
    Video input N.A.
    Video out Yes, mini-HDMI out
    Internal storage 64 GB M.2 SSD
    External storage via USB
    Storage socket 2 SD-Card Slot (door)
    OS Windows 10 IoT LTSC
    Additional Windows license required Yes, at a cost
    LED Light Bar via PoGo
    I/O Ports Combo Jack,Ethernet (RJ45),S/PDIF,Micro-USB,2x USB 3.0
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi optional via USB dongle
    Bluetooth optional via USB dongle
    Power over Ethernet (PoE) N.A.
    Integrated NFC via PoGo & USB
    Camera via PoGo & USB
    Video/Audio
    Video support H.264
    Audio support AAC,ASF,MP2,MP3,OGG,WAV,WMA
    Photo support JPG,JPEG,PNG,BMP,GIF
    Microphone via USB & 3.5mm jack
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Metal
    Color Black
    Weight 15000 g
    Dimensions 767,7 x 469,2 x 59 mm
    Mounting / VESA VESA 200
    Power Supply AC 110 V - 240 V
    Power Supply Included? Yes
    Power Usage 11 ~ 80 Watt
    Pogo Pins 2x (bottom/left)
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR2032 Lithium metal, non rechargeable
    Storage Temp -10~55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90% non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 2 years
    Certifications CE, RoHS, REACH
    SKU 6032200
