ABPC-4200
SKU: 7099100
This is a legacy product and is no longer available.
Please find the replacement for this product here.

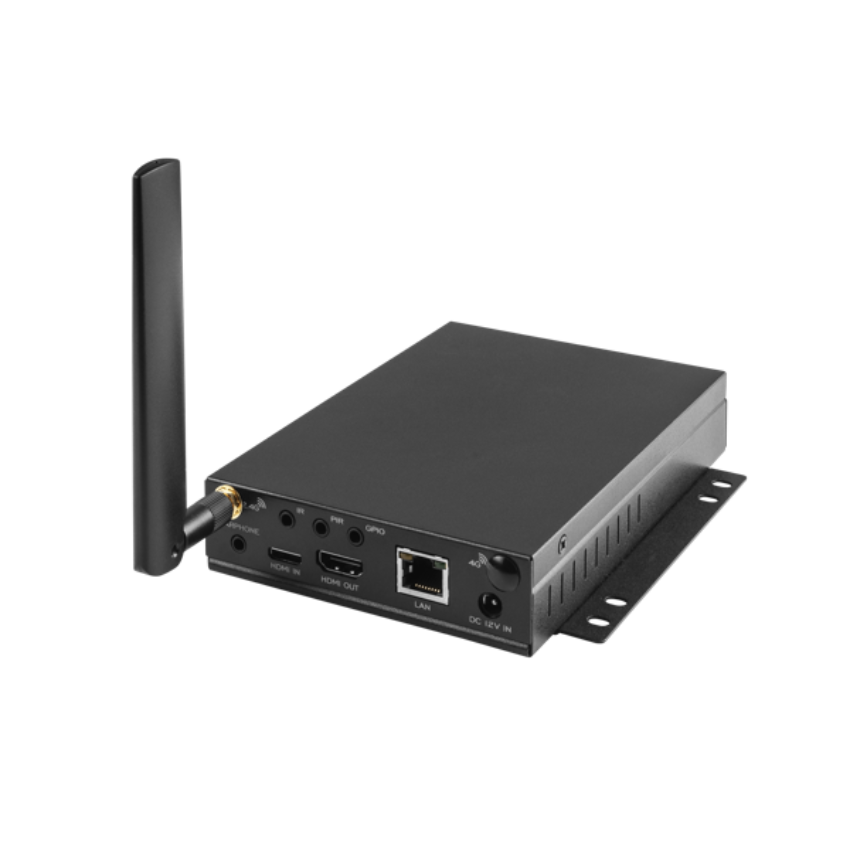

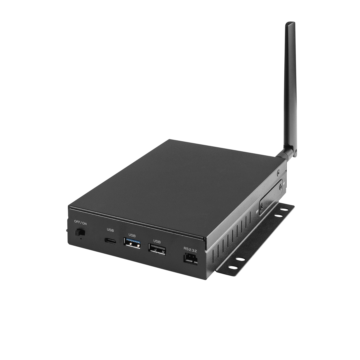

With our Android Box PC you can reach your customers and have them interact with your brand in a way that is proven to increase sales and brand awareness. Our ABPC-4200 comes with Android 9 and is made of durable materials and built specifically for commercial use. ProDVX Devices have been developed to solve the problems found in commercial environments that consumer devices are not designed for.
Panel
| Panel type | N.A. |
| Backlight | N.A. |
| Brightness | N.A. |
| Viewing angle | N.A. |
| Contrast ratio | N.A. |
| Touch Type | N.A. |
| Treatment | N.A. |
| Convenience | Easy installation |
| Gyro | N/A |
| Operation hours | 24/7 |
System
| CPU | RK3399 (Dual Core Cortex A72 with Quad Core A53) |
| GPU | MALI T860MP4 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System memory | 4GB DRAM |
| Video input | mini HDMI |
| Video out | HDMI |
| Internal storage | 16GB eMMC |
| External storage | MicroSD-Card Slot (door) |
| Card slot | MicroSD |
| OS | Android 9 (optional Linux) |
| LED Light Bar | N.A. |
| I/O Ports | 3.5 mm (IR and PIR sensor in),Combo Jack,HDMI-out 2.0,RJ45,USB 2.0,USB 3.0,USB-C,mini-HDMI-in 1.4,1x RS232,GPIO |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac 2.4&5GHz (external antenna) |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | N.A. |
| Integrated NFC | via USB |
| Camera | N/A |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES (Combo Jack) |
| Speakers | N/A |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Blue |
| Weight | 470 g |
| Dimensions | 153,3 x 107 x 30,6 mm |
| Mounting / VESA | VESA 75/100 x 120 mm |
| Power Supply | 12V / 2A DC input |
| Power Supply Included? | Yes |
| Power Usage | 10 ~ 15 Watt |
| Pogo Pins | N.A. |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | FCC, CE & RoHS |
| SKU | 7099100 |
