APPC-10XP
(R23-7221)
SKU: 5010610

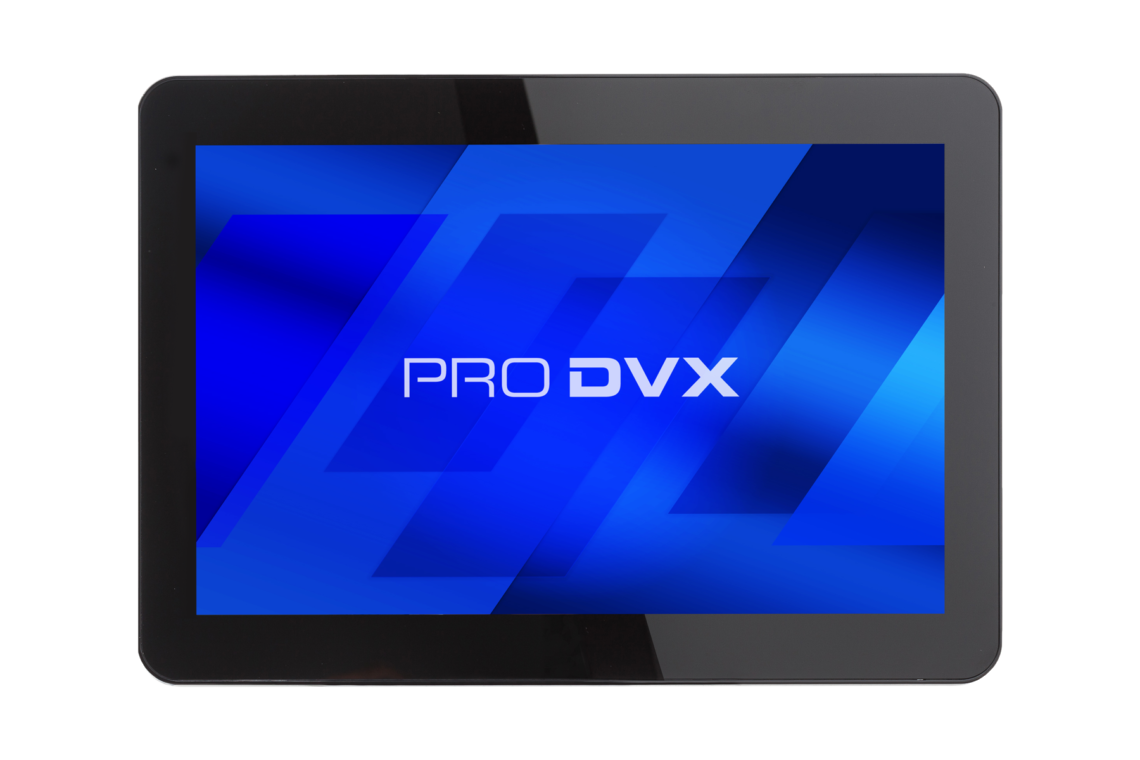

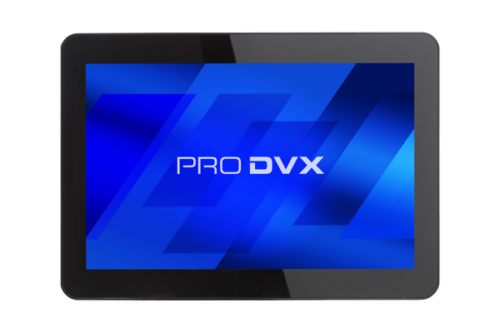

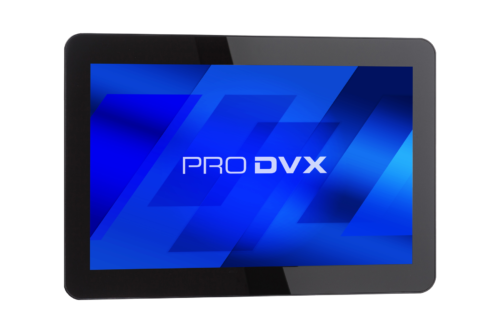

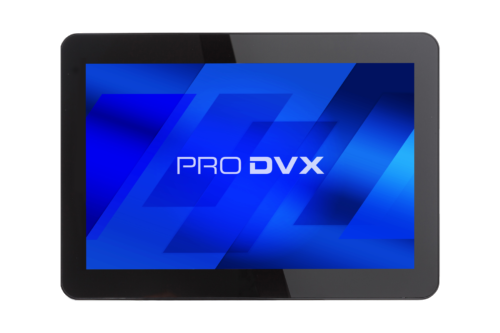

The APPC-10XP (R23-7221) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10XP (R23-7221) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1280 x 800 |
| Aspect ratio | 16:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 500 cd/m2 |
| Viewing angle | H160 / V160 |
| Contrast ratio | 800 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |

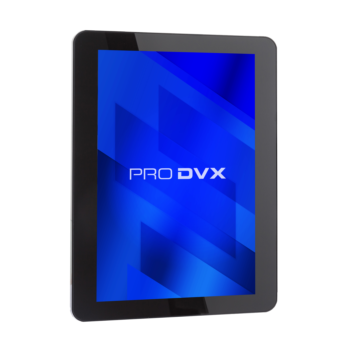

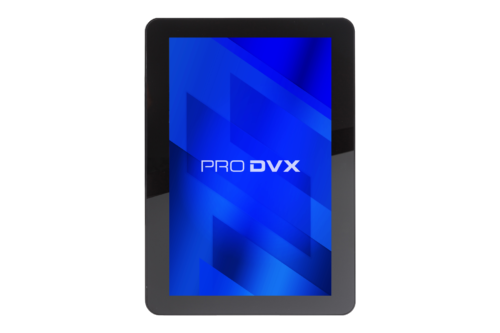

| Convenience | Landscape,Portrait,Table Mode,Flushmount |
| Operation hours | 24h / 7d |
System
| CPU | RK3568 |
| GPU | Mali-G52 |
| Cooling | Fanless |
| System memory | 4 GB DDR4 SDRAM |
| Video input | N.A. |
| Video out | Yes, HDMI out |
| Video resolution | 1280 x 800 |
| Internal storage | 16 GB eMMC Flash |
| External storage | SD-Card Slot (door) |
| Card slot | SD |
| OS | Android 12 |
| LED Light Bar | via PoGo |

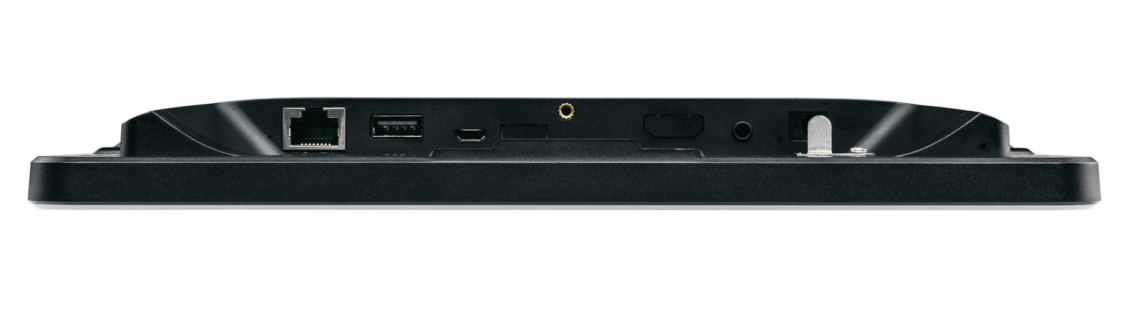

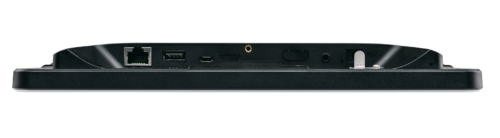

| I/O Ports | 12 V DC-IN,3.5 mm audio-out,USB 2.0,RJ45,GPIO,Micro-USB,3x Pogo pin,HDMI out |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | 5 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 650 g |
| Dimensions | 255,3 x 181 x 26,7 mm |

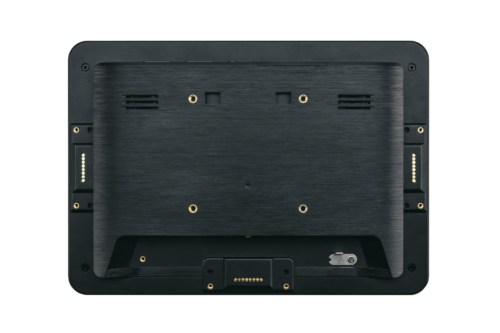

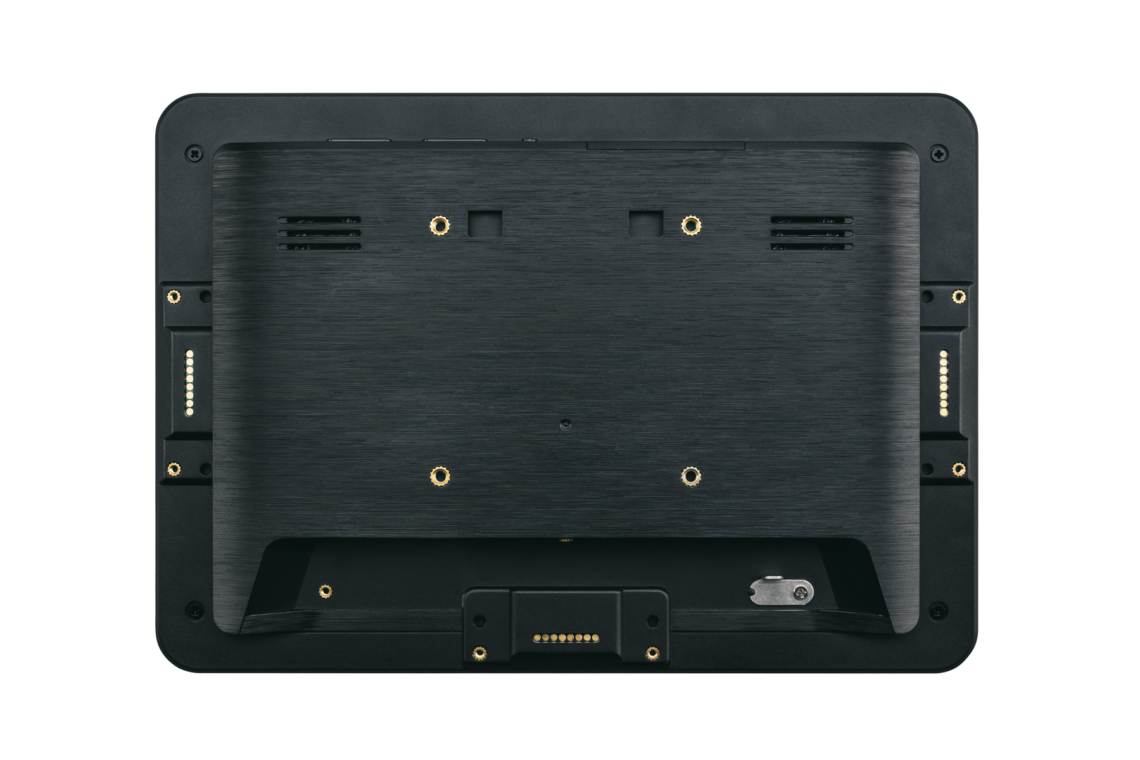

| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Supply Included? | No |
| Power Usage | 10 ~ 23 Watt |

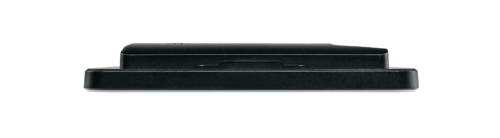

| Pogo Pins | 3x (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5010610 |
