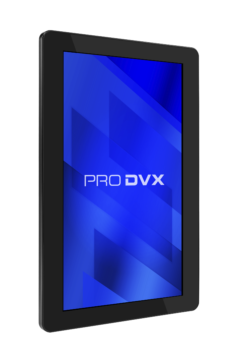

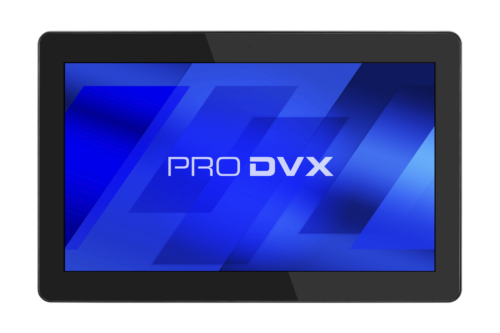

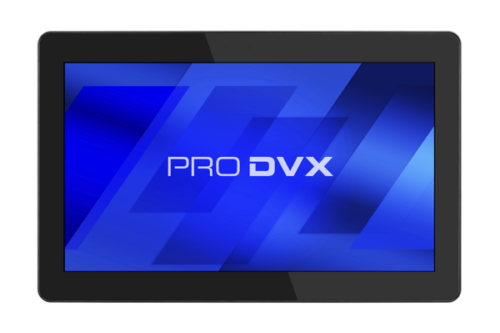

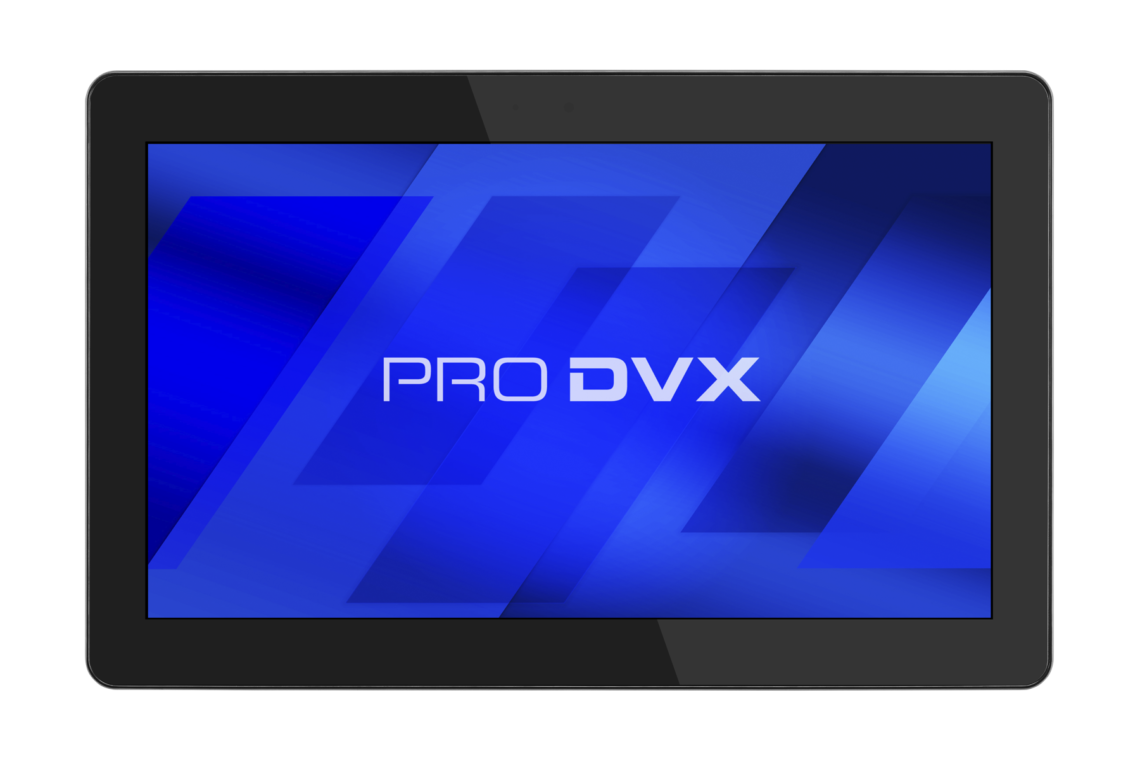

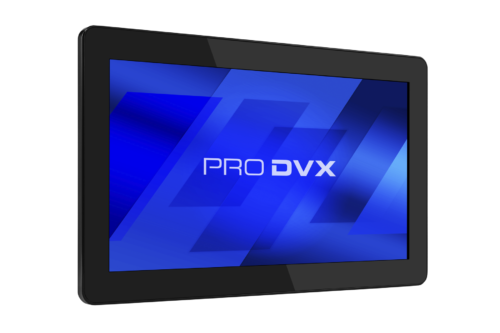

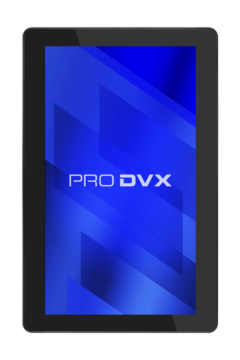

APPC-13XP
(R23-7222)
SKU: 5013200
Explore our cutting-edge 13-inch Android Panel PC, the APPC-13XP (R23-7222). Running on Android 12 and equipped with a quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and delivers advanced graphics capabilities. Boasting 4GB RAM and 16GB storage, it facilitates efficient multitasking. The inclusion of IEEE 802.3at PoE+ support simplifies power and connectivity, eliminating the need for intricate wiring plans. This Android Panel PC provides a range of I/O ports for peripheral devices, making it an ideal solution for various applications, including retail, corporate, healthcare, and industrial settings. The APPC-13XP (R23-7222) supports 10-point PCAP touch functionality and has undergone non-glare treatment for improved visibility. Additionally, it supports 300cd/m2 brightness. With its innovative features, the APPC-13XP (R23-7222) stands as the ultimate device to elevate your solution to new heights.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m2 |
| Viewing angle | H170 / V170 |
| Contrast ratio | 800 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24h / 7d |
System
| Chipset | Cortex A55, 2.0 GHz, 4-Core |
| CPU | RK3568 (Quad-core ARM Cortex-A55) |
| GPU | Mali-G52 |
| Cooling | Fanless |
| System memory | 4 GB DDR4 SDRAM |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| Internal storage | 16 GB eMMC Flash |
| External storage | SD-Card Slot (door) |
| Card slot | SD |
| OS | Android 12 |
| LED Light Bar | via PoGo |
| I/O Ports | 12 V DC-IN,Micro-USB,RJ45,mini-hdmi-out,USB 2.0,GPIO,3.5 mm jack in/out,USB 3.0,3x Pogo pin |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n |
| Bluetooth | 5 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 1050 g |
| Dimensions | 337,1 x 214,5 x 26,2 mm |
| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A |
| Power Supply Included? | No |
| Power Usage | 10 ~ 23 Watt |
| Pogo Pins | YES (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5013200 |
