APPC-7XPLN
(R23-7281)
SKU: 5007560

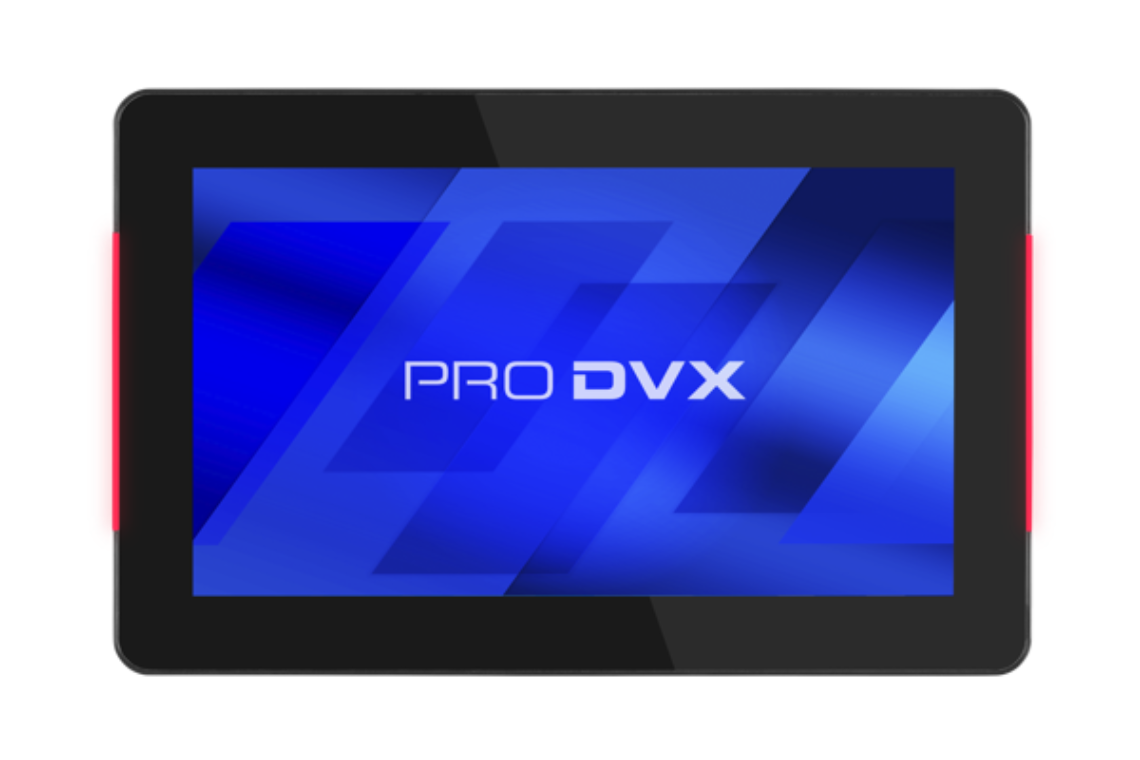

The APPC-7XPLN (R23-7281) is a 7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility. Additionally, the APPC-7XPLN (R23-7281) includes an integrated NFC module for added functionalities.
Panel
| Panel type | TFT LCD |
| Resolution | 1024 x 600 |
| Aspect ratio | 17:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m2 |
| Viewing angle | H140 / V130 |
| Contrast ratio | 800 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |

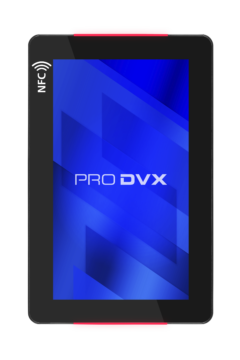

| Convenience | Landscape,Portrait,Table Mode,Flushmount |
| Operation hours | 24h / 7d |
System
| Chipset | Cortex A55, 2.0 GHz, 4-Core |
| CPU | RK3568 (Quad-core ARM Cortex-A55) |
| GPU | Mali-G52-2EE |
| Cooling | Fanless |
| System memory | 4 GB DDR4 SDRAM |
| Video input | N.A. |
| Video out | N.A. |
| Video resolution | 1024 x 600 |
| Internal storage | 16GB eMMC |
| External storage | MicroSD-Card Slot (door) |
| Card slot | miniSD |
| OS | Android 12 |

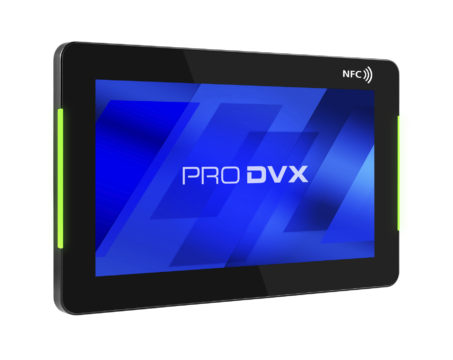

| LED Light Bar | 2 sided LED bar (RGB) |

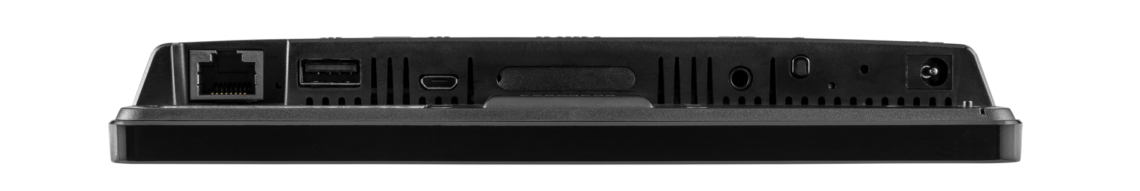

| I/O Ports | 12 V DC-IN,1x Pogo pin,Combo Jack,USB 2.0,Micro-USB,Ethernet (RJ45) |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | 5 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | Integrated NFC reader (NXP PN553) |
| Camera | via PoGo & USB |
Video/Audio
| Video support | MPEG2,MPEG4,H.264,MP4,MPG |
| Audio support | MP2,WMA,WAV,AAC,OGG,MP3,ASF |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES |
| Speakers | 2 x 1 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 360 g |
| Dimensions | 188,1 x 120,3 x 25,2 |

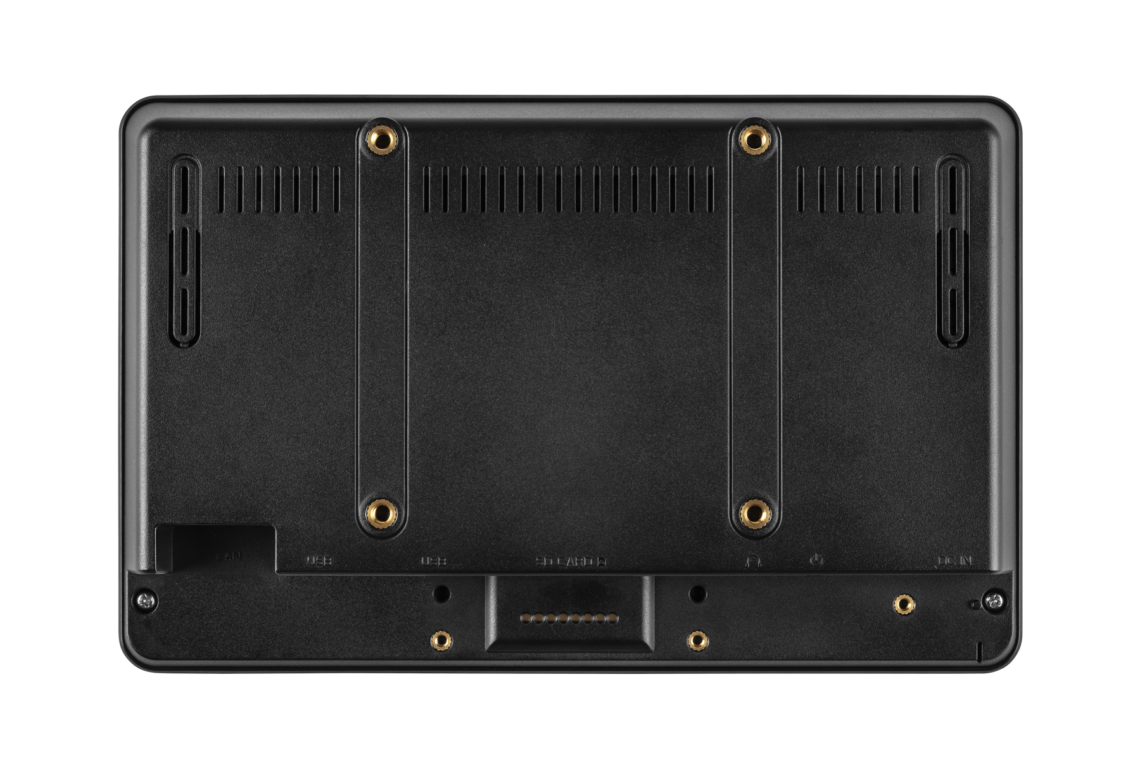

| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A |
| Power Supply Included? | Optional accessory |
| Power Usage | 6 ~ 23 Watt |
| Pogo Pins | 1x (bottom) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 0 ~ 95% non-condensing |
| MTBF | 35,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5007560 |
