IPPC-10HD

SKU: 6010100
  • 10" Intel Panel PC
  • Windows 10 IoT
  • This is a legacy product and is no longer available.

    Please find the replacement for this product here.

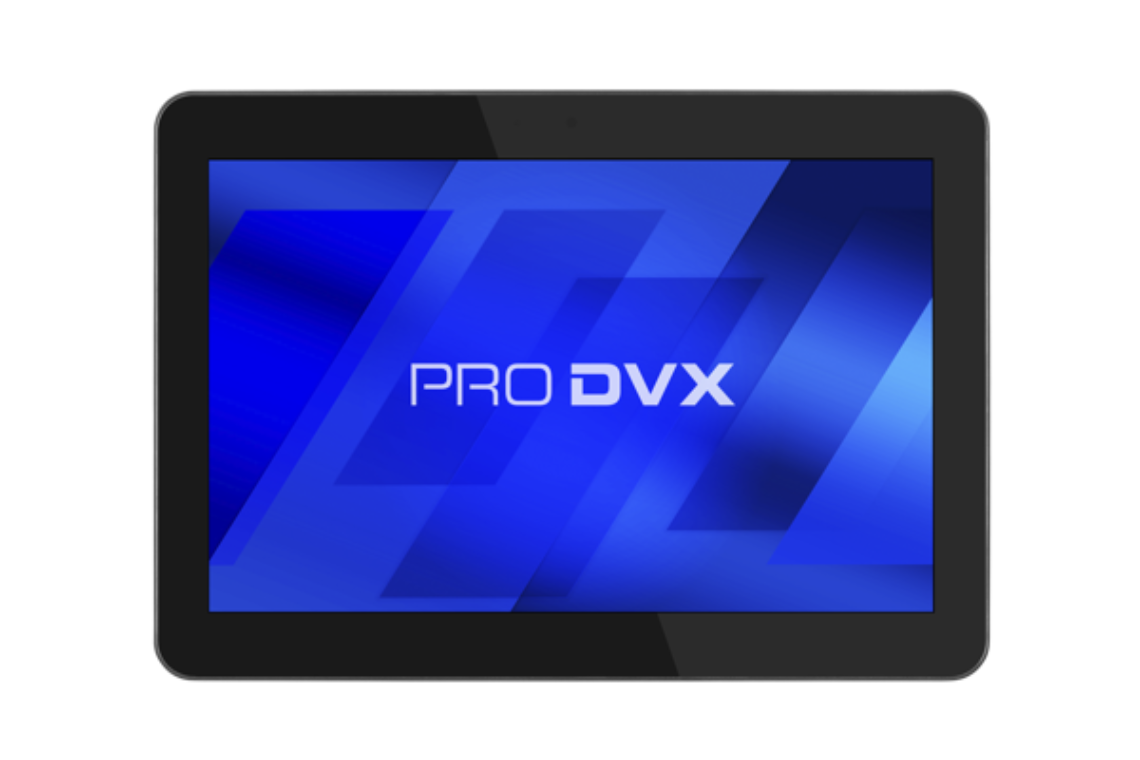

    The ProDVX IPPC-10 HD is an Intel Panel PC with a 10.1" Touch Display. The ProDVX IPPC-10 HD standard comes with an Intel Braswell N3160 Quad Core. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display with plastic frontside and metal backside. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module, Motion Sensor or VESA brackets.
    Panel
    Panel type TFT LCD IPS
    Resolution 1280 x 800
    Aspect ratio 16:10 wide
    Backlight Edge-LED backlight
    Brightness 500 cd/m2
    Viewing angle H 160° / V 160°
    Contrast ratio 600 : 1
    Touch Type 10 point touch projected capacitive
    Convenience Landscape,Portrait,Table Mode
    System
    CPU Intel Braswell N3160 Quad Core
    GPU Intel HD Graphics
    Cooling Fanless
    System memory 4 GB DDR3L 1600
    Internal storage 64 GB M.2 SSD
    Storage socket 2 SD-Card Slot (door)
    Card slot SD
    OS Windows 10 (optional Linux)
    LED Light Bar N/A
    I/O Ports 12 V DC-IN,RJ45,USB 2.0,USB 3.0
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 b/g/n SiP wireless module
    Bluetooth BT 4.0
    Power over Ethernet (PoE) N/A
    Camera N/A
    Video/Audio
    Speakers 2 x 2 W
    Audio Jack Output 3.5mm N/A
    Physical
    Housing Plastic Front / Metal Backside
    Color Black
    Weight 610 g
    Dimensions 253 x 178 x 25 mm
    Mounting / VESA VESA 75
    Power Supply 12 V / 3.3 A
    Power Supply Included? Yes
    Power Usage 11 ~ 26 Watt
    Pogo Pins YES
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90 % non-condensing
    MTBF 45,000 hours demonstrated
    Standard Warranty 2 years
    Certifications FCC, CE, RoHS
    SKU 6010100
