IPPC-10SLB
SKU: 6010200
This is a legacy product and is no longer available.
Please find the replacement for this product here.

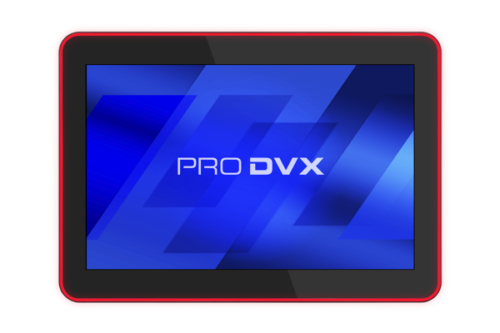

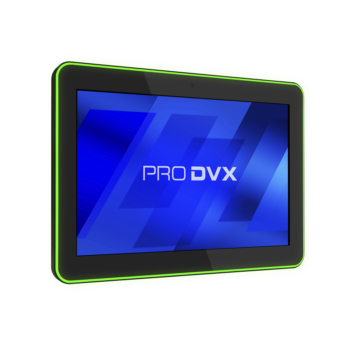

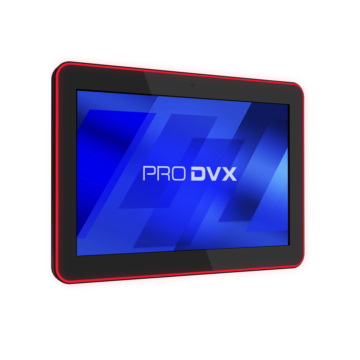

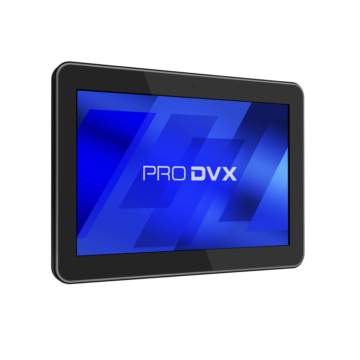

The ProDVX IPPC-10SLB is a Commercial Grade 10.1 inch Intel Panel PC with Power over Ethernet (PoE) and Surround LED Status Light Bar (Full RGB). With its Surround LED Bar it is the ideal solution for Room Booking, Room Signage and Access Control. This device can be connected through RJ45 LAN, WiFi and Bluetooth. The IPPC-10SLB Intel Panel PC standard comes with an Intel Atom X5-Z8350 Quad Core CPU and has a projected capacitive touch display and plastic housing. Optional accessories are a 1D/2D Barcode Scanner, Camera and NFC Module. This product requires an additional Windows 10 IoT Enterprise LTSC license.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1280 x 800 |
| Aspect ratio | 16:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 500 cd/m2 |
| Viewing angle | H 160° / V 160° |
| Contrast ratio | 800 : 1 |
| Touch Type | 10 point touch projected capacitive |
| Convenience | Landscape,Portrait,Table Mode |
| Operation hours | 24/7 |
System
| CPU | Intel Atom x5-Z8350 Quad Core |
| GPU | Intel HD Graphics (2GB, FullHD) |
| Cooling | Fanless |
| System memory | 4 GB DDR3L-RS 1600 |
| Internal storage | 64 GB eMMC |
| External storage | SD-Card Slot (door) |
| Storage socket 2 | SD-Card Slot (door) |
| Card slot | SD |
| OS | Windows 10 (optional Linux) |
| Additional Windows license required | Yes, at a cost |
| LED Light Bar | Surround LED Bar (full RGB) |
| I/O Ports | 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,HDMI out,USB 2.0,GPIO |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/c wireless module |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | Optional accessory |
| Camera | Optional accessory |
Video/Audio
| Microphone | YES |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Plastic |
| Color | Black |
| Weight | 650 g |
| Dimensions | 255,3 x 181 x 26,7 mm |
| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Supply Included? | No |
| Power Usage | 10 ~ 20 Watt |
| Pogo Pins | YES (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | ‐10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | FCC, CE, RoHS |
| SKU | 6010200 |
