IPPC-22-6000
SKU: 6022100

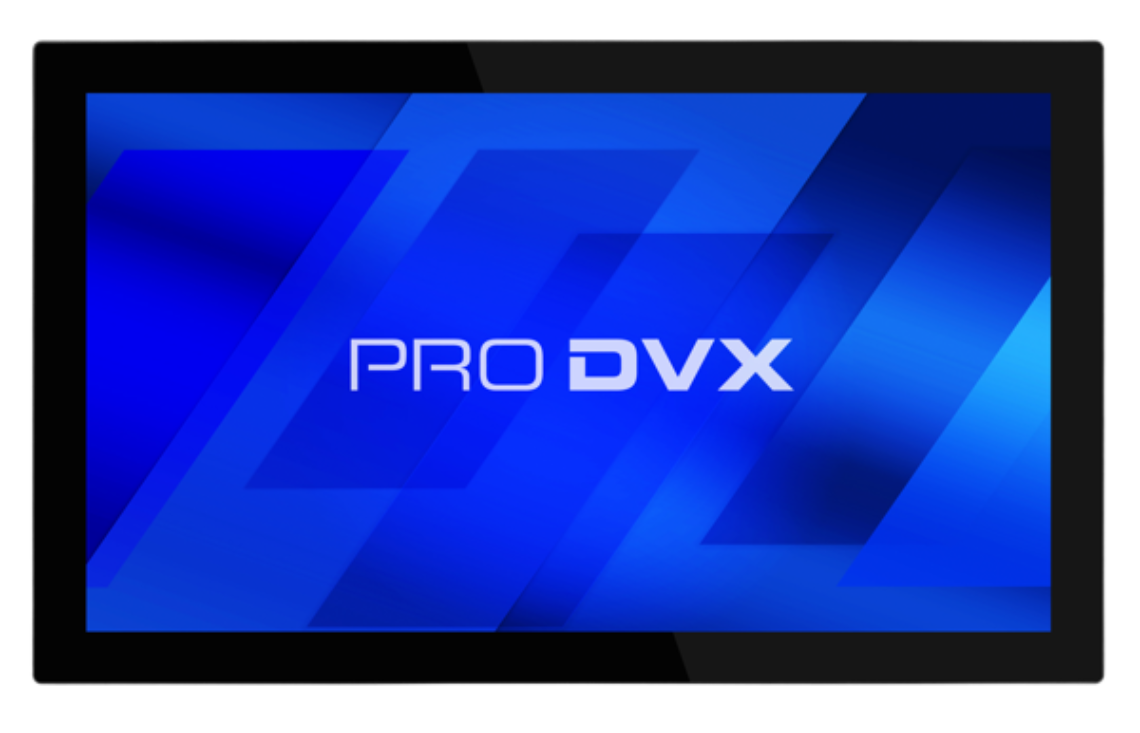

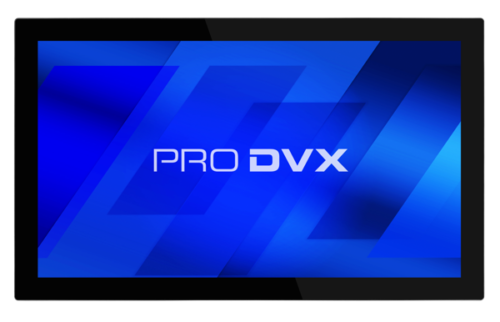

The ProDVX IPPC-22-6000 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-22-6000 standard comes with an Intel Pentium N4200 1.1 GHz. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets. This product requires an additional Windows 10 IoT Enterprise LTSC license.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing angle | H178 / V178 |
| Contrast ratio | 3000 to 1 |
| Touch Type | 10 TP Pcap 20ms |
| Treatment | Glare |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24h / 7d |
System
| Chipset | HD505 |
| CPU | Intel Pentium N4200 1.1 GHz |
| GPU | Intel HD 505 Graphics |
| Cooling | Fanless |
| System memory | 4GB DDR3L |
| Video input | N.A. |
| Video out | Yes, mini-HDMI out |
| Internal storage | SSD 64GB M.2 2242 |
| External storage | SD-Card Slot (door) |
| Storage socket 2 | SD-Card Slot (door) |
| OS | Windows 10 IoT LTSC |
| Additional Windows license required | Yes, at a cost |
| LED Light Bar | N.A. |
| I/O Ports | 12 V DC-IN,2x COM (RJ45),Ethernet (RJ45),Micro-USB,S/PDIF,mini-hdmi-out,Combo Jack,2x USB 3.0 |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | N.A. |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | MKV,MP4 |
| Audio support | MP3,WMA |
| Photo support | JPEG,PNG |
| Microphone | YES |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 4200 g |
| Dimensions | 530,5 x 321,22 x 35 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 5 A |
| Power Supply Included? | Yes |
| Power Usage | 40 ~ 70 Watt |
| Pogo Pins | 3x (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | CE, RoHS, REACH |
| SKU | 6022100 |
