IPPC-22-6200
(R22-6000)
SKU: 6022150

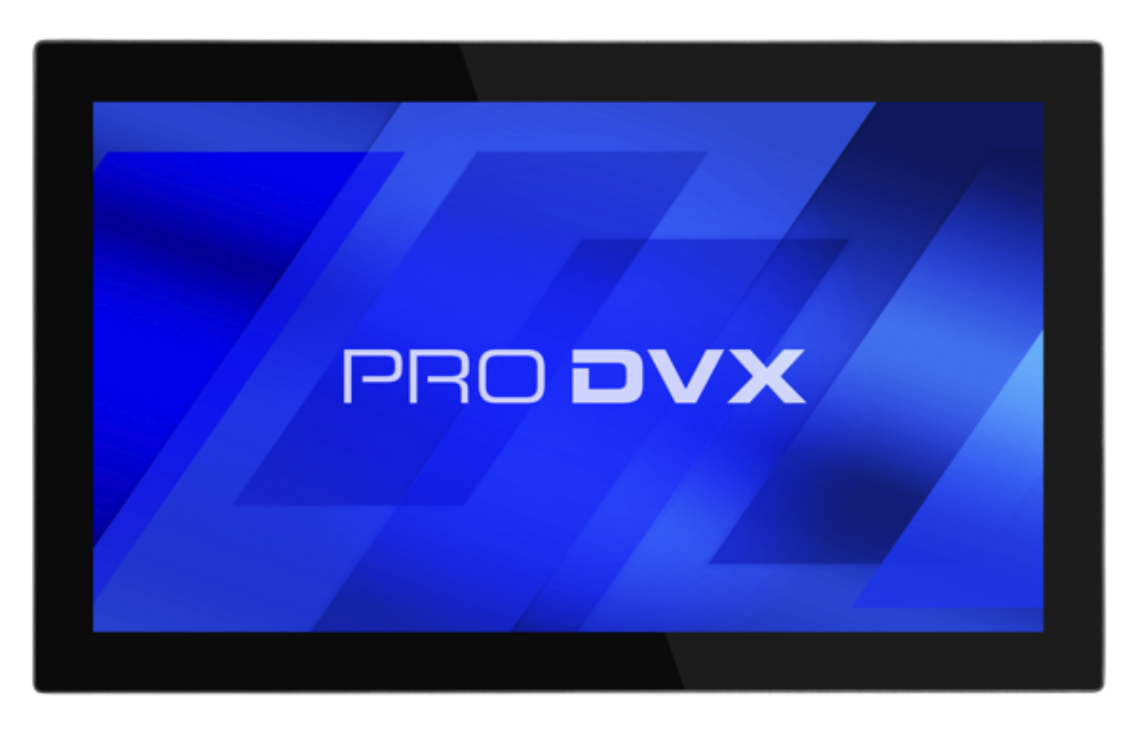

The ProDVX IPPC-22-6200 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-22-6000 standard comes with an Intel® Core™ i5 - 8500T. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in metal housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets. This product requires an additional Windows 10 IoT Enterprise LTSC license.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing angle | H178 / V178 |
| Contrast ratio | 3000 to 1 |
| Touch Type | 10 TP Pcap 20ms |
| Treatment | Glare |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| Operation hours | 24h / 7d |
System
| CPU | Intel® Core™ i5 - 8500T |
| GPU | Intel® UHD Graphics 630 |
| Cooling | YES |
| System memory | 8GB DDR4L |
| Video input | N.A. |
| Video out | Yes, HDMI out |
| Internal storage | 128GB SATA SSD 2,5" |
| External storage | via USB |
| Storage socket 2 | SD-Card Slot (door) |
| OS | Windows 10 (optional Linux) |
| Additional Windows license required | Yes, at a cost |
| LED Light Bar | via PoGo |
| I/O Ports | DisplayPort out (v1.2),RJ45 (2x),3.5 mm audio-out,3.5 mm audio-in,2x USB 3.0,2x USB 2.0,HDMI out,12 V DC-IN,2x RS232 |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.3 b/g/n |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | N.A. |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | MKV,MP4 |
| Audio support | MP3,WMA |
| Photo support | JPEG,PNG |
| Microphone | via USB & 3.5mm jack |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 7225 g |
| Dimensions | 535,5 x 328,6 x 62,5 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 5 A |
| Power Supply Included? | Yes |
| Power Usage | 40 ~ 70 Watt |
| Pogo Pins | 2x (bottom/left) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 - Lithium‐metal non‐rechargeable coin |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | FCC, CE, RoHS |
| SKU | 6022150 |
