IPPC-32

SKU: 6032101
  • 32" Intel Panel PC
  • Windows 10 IoT LTSC
  • This is a legacy product and is no longer available.

    Please find the replacement for this product here.

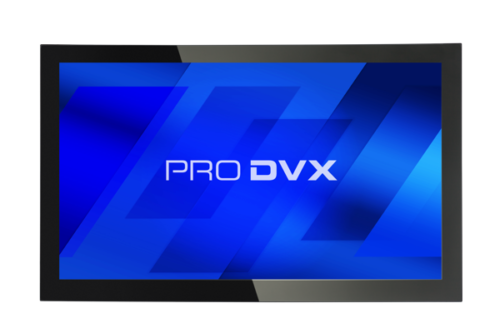

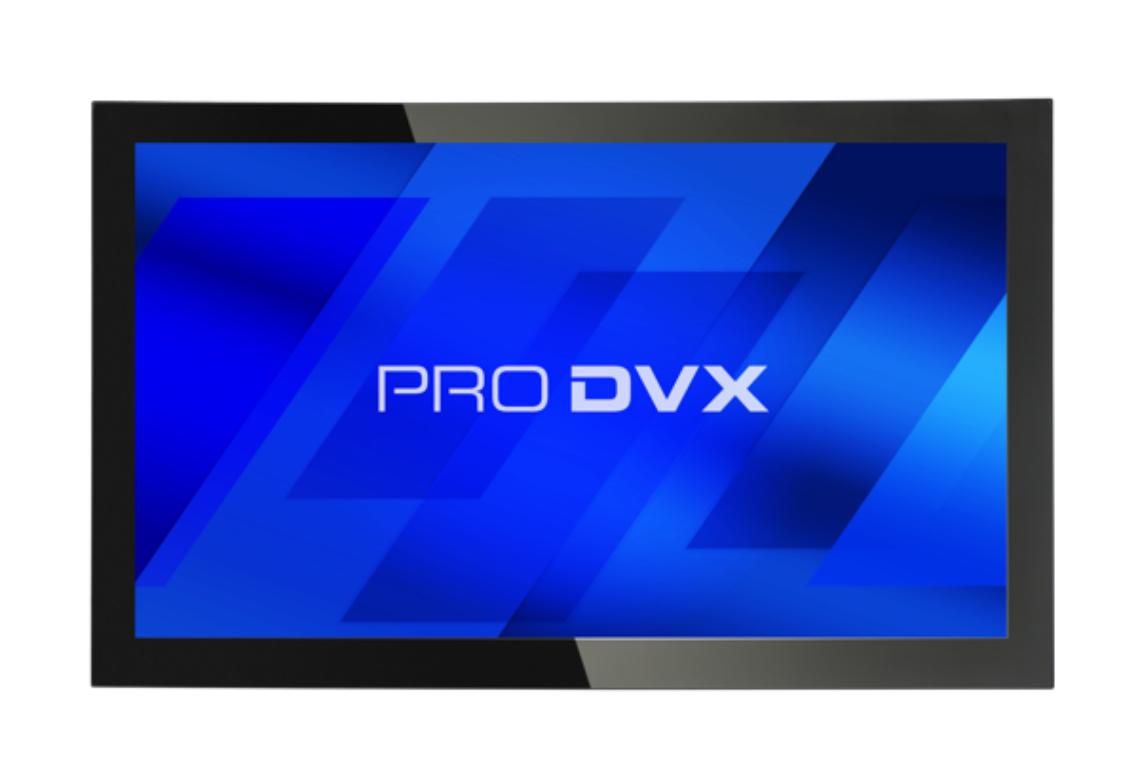

    The ProDVX IPPC-32 is an Intel Panel PC with a 31.5" Touch Display. The ProDVX IPPC-32 standard comes with an Intel Pentium N3710. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in metal housing. It can be mounted using the VESA 200 brackets. This product requires an additional Windows 10 IoT LTSC license.
    Panel
    Panel type TFT LCD IPS
    Resolution 1920 x 1080
    Aspect ratio 16:9 wide
    Backlight Edge-LED backlight
    Brightness 400 cd/m2
    Viewing angle H 178° / V 178°
    Contrast ratio 1200 : 1
    Touch Type 10 point touch projected capacitive
    Convenience Landscape,Portrait,Table Mode
    Operation hours 24/7
    System
    CPU Intel® Pentium® N3710
    GPU Intel HD Graphics
    Cooling Fanless
    System memory 4 GB DDR3L 1600
    Internal storage 64 GB M.2 SSD
    Storage socket 2 SD-Card Slot (door)
    OS Windows 10 (optional Linux)
    Additional Windows license required Yes, at a cost
    LED Light Bar N/A
    I/O Ports 12 V DC-IN,Combo Jack,Ethernet (RJ45),S/PDIF,Micro-USB,2x USB 3.0
    Network LAN RJ45 10/100/1000 Mbps LAN
    WiFi 802.11 b/g/n SiP wireless module
    Bluetooth BT 4.0
    Power over Ethernet (PoE) N/A
    Camera N/A
    Video/Audio
    Speakers 2 x 3 W
    Audio Jack Output 3.5mm YES
    Physical
    Housing Metal
    Color Black
    Weight 10450 g
    Dimensions 769 x 470,5 x 45,5 mm
    Mounting / VESA VESA 200
    Power Supply AC 110 V - 240 V
    Power Supply Included? Yes
    Power Usage 11 ~ 26 Watt
    Pogo Pins YES
    Other
    OSD Language Multi OSD language
    Clock Battery (for RTC) CR2032 - Lithium‐metal non‐rechargeable coin
    Storage Temp ‐10 ~ 55 degrees C
    Working Temp 0 ~ 40 degrees C
    Storage/Working Humidity 10 ~ 90% non-condensing
    MTBF 50,000 hours demonstrated
    Standard Warranty 2 years
    Certifications FCC, CE, RoHS
    SKU 6032101
