SD-15
SKU: 2015100

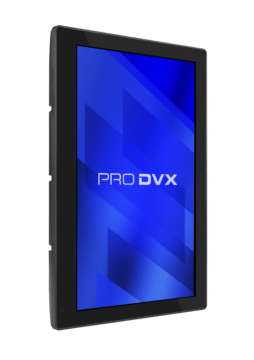

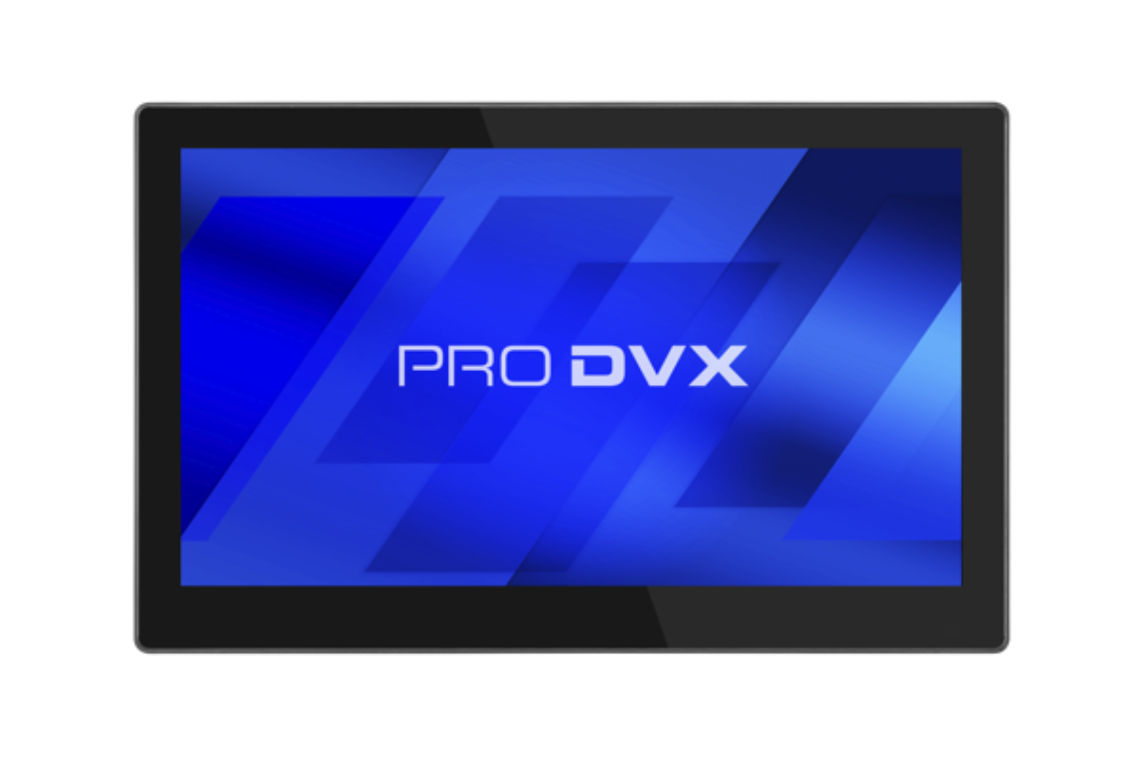

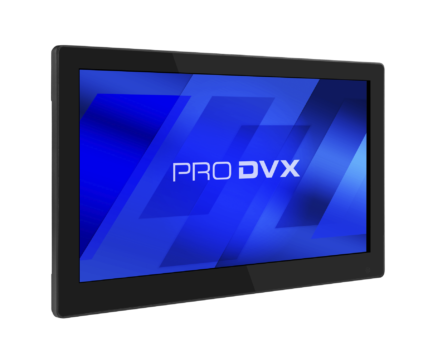

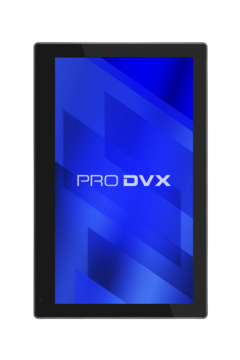

The ProDVX SD-15 is a Commercial Grade Signage Display, capable of operating 24/7. The ProDVX SD-15 has an integrated Full HD Media Player with an SD/MMC and MS Card Slot for storing your content. Alternatively your content can be played by connecting the external source to the HDMI input.
This 15.6" Commercial Grade Signage Display comes standard with an Auto Video Play & Loop function and USB OTG (=automatic USB update) functionality.
This Commercial Grade Signage Display supports a wide variety of video, audio and photo sources and can be VESA mounted using one of our mounting options. For audio playback the SD-15 comes with speakers and an audio jack.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing angle | H160 / V160 |
| Contrast ratio | 800 to 1 |
| Touch Type | N.A. |
| Convenience | Landscape,Portrait |
| Gyro | N/A |
| Operation hours | 24h / 7d |
System
| Monitor | YES |
| Video input | Yes, HDMI in |
| Video resolution | 1920 x 1080 |
| Internal media player | YES |
| External storage | SD-Card Slot |
| Card slot | SD/MMC/MS |
| USB Host | 1 x |
| I/O Ports | 12 V DC-IN,3.5 mm audio-in,3.5 mm audio-out,USB 2.0,HDMI-in 1.4 |
| Auto Video Play & Loop | YES |
Video/Audio
| Video support | AVI,H.264,MKV,MOV,MPG,MPEG2,MPEG4,RM,RMVB,TS etc. |
| Audio support | AAC,MP3 |
| Photo support | JPEG,BMP |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 1700 g |
| Dimensions | 388 x 245 x 27 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 1.5 A |
| Power Supply Included? | Yes |
| Power Usage | 12 Watt |
Other
| OSD Language | Multi OSD language |
| Real time clock (RTC) | YES |
| Calendar | YES |
| Remote control | YES |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| Standard Warranty | 2 years |
| Certifications | CE, RoHS |
| SKU | 2015100 |
