SD-22
SKU: 2022100

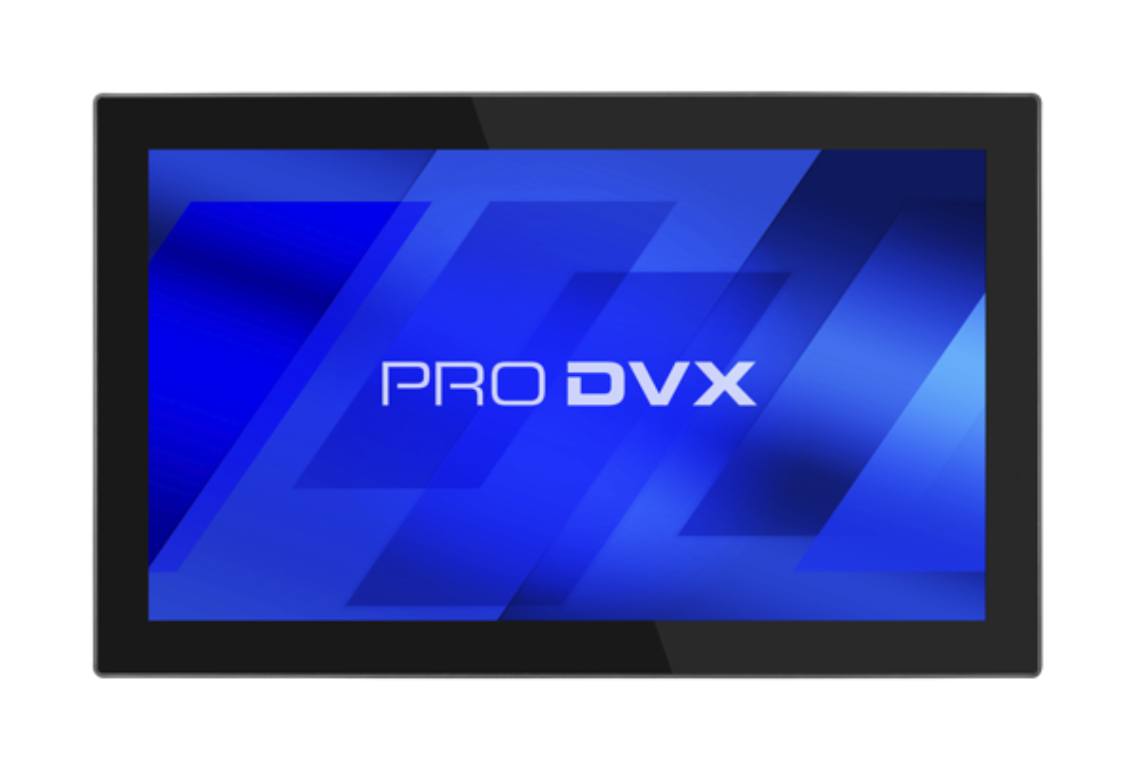

The ProDVX SD-22 is a professional Signage Display. The ProDVX SD-22 comes with an embedded FHD Media Player. The content can be connected through the HDMI input and the unit has a SD, MMC, and MS Card Slot. This 21.5" Commercial Grade Signage Display standard comes with an Auto Video Play & Loop option and has plastic housing. This device supports multiple video, audio and photo sources and can be mounted through a VESA mount. The SD-22 standard comes with speakers and an audio jack output 3.5 mm.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 wide |
| Backlight | Edge-LED backlight |
| Brightness | 250 cd/m2 |
| Viewing angle | H160 / V160 |
| Contrast ratio | 600 to 1 |
| Touch Type | N.A. |
| Convenience | Landscape,Portrait |
| Gyro | N/A |
| Operation hours | 24h / 7d |
System
| Monitor | YES |
| Video input | Yes, HDMI in |
| Video resolution | 1920 x 1080 |
| Internal media player | YES |
| External storage | SD-Card Slot |
| Card slot | SD/MMC/MS |
| USB Host | 1 x |
| I/O Ports | 12 V DC-IN,3.5 mm audio-in,3.5 mm audio-out,USB 2.0,HDMI-in 1.4 |
| Auto Video Play & Loop | YES |
Video/Audio
| Video support | AVI,H.264,MKV,MOV,MPG,MPEG2,MPEG4,RM,RMVB,TS etc. |
| Audio support | AAC,MP3 |
| Photo support | JPEG,BMP |
| Speakers | 2 x 3 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 3600 g |
| Dimensions | 538 x 331 x 39,5 mm |
| Mounting / VESA | VESA 100 |
| Power Supply | 12 V / 3 A |
| Power Supply Included? | Yes |
| Power Usage | 14 Watt |
Other
| OSD Language | Multi OSD language |
| Real time clock (RTC) | YES |
| Calendar | YES |
| Remote control | YES |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90% non-condensing |
| Standard Warranty | 2 years |
| Certifications | CE, RoHS |
| SKU | 2022100 |
